TPMS: What The Tire Pressure Light Means, Why It Flashes, And How To Reset It
A tire pressure light on with four tires that still look full is the most common TPMS question there is, and it has three very different answers: a tire that really is low, a sensor that lost its place after a rotation, and a sealed battery that finally died inside the wheel. The warning light cannot tell them apart — it just tells you to look. Here is how to tell them apart yourself, what each reset route actually does, and what a dead sensor costs to deal with.
01 — What The Light Is Telling You
What The TPMS Light Means: Solid, Flashing, Or Both
Every TPMS light does one of three things, and the pattern changes the diagnosis. A US federal standard has required new light vehicles to warn when at least one tire sits 25 percent or more below the pressure on the door placard, and to show a fault warning within 20 minutes when the system itself stops working. Which one you are looking at decides what you do next.
On for a few seconds, then off
That is the bulb check. Every TPMS lamp proves itself when you turn the key, exactly like the oil and check-engine lights. Nothing is wrong, and no reset is needed.
Solid all the time
One or more tires has dropped 25 percent or more below placard pressure, and on many cars an over-inflated tire will do it too. Measure all four cold against the sticker on the driver's door jamb — not the number moulded on the tire.
Flashes about a minute, then stays on
The system itself has a fault, and it repeats the flash on every ignition cycle. Usual causes: a dead sensor battery, a missing sensor, a wheel without one fitted, or sensors that need re-teaching. No amount of air fixes this one.
02 — Direct Or Indirect
How TPMS Works: Direct Sensors Versus Indirect Wheel-Speed Systems
Both kinds of system put a horseshoe-and-exclamation symbol on your dash, and both satisfy the same US standard. What sits behind that symbol is either a pressure sensor in every wheel or nothing at all in the wheels — which changes everything about batteries, tire changes and what a fault means.
Direct measuring TPMS
A battery-powered transmitter sits in every wheel, usually clamped to the valve stem, and reports real pressure to a receiver in the car.
- What it measuresActual pressure in each tire, position by position
- HardwareOne sensor per wheel, 315 MHz in North America and Japan, 433 MHz across most of Europe and Asia
- BatterySealed into the sensor, replaced with the sensor, typically good for 5 to 10 years
- After a rotation or tire changeOften needs the sensors re-taught to the new positions
- Common faultsDead battery, cracked valve core, corrosion, a sensor broken during mounting
- Who uses itMost GM, Ford, Toyota, Stellantis and Hyundai vehicles, plus many Hondas
Indirect measuring TPMS
No sensors in the wheels. The system compares wheel speeds and rolling radius to guess when one tire is out of step with the others.
- What it measuresDifferences between tires, not the pressure in any one of them
- HardwareNothing inside the wheel; it works through the ABS wheel-speed sensors
- BatteryNone to fail inside the tire — nothing wears out where the rubber is
- After a rotation or tire changeNeeds a calibration cycle, not sensor re-teaching
- Common faultsUncalibrated after a pressure change, a compact spare fitted, or a genuinely slow leak shared by all four tires
- Who uses itSelected Hondas and Acuras, where the manual describes comparing rolling radius and rotation instead of reading a sensor
03 — Cold Mornings And The 25-Percent Rule
Check The TPMS System: Placard Pressure, Cold Tires And Winter Mornings
Tire pressure falls about 1 psi for every 10°F the air cools, and tires lose roughly 1 psi a month to slow permeation. A truck set correctly in October can be 6 to 8 psi light by January with no puncture at all — and the lamp will not wait for you to notice. Here is the same 35-psi truck measured across a real winter morning.
| Morning air temperature | Pressure you measure cold | Against the 35 PSI placard | What the lamp does |
|---|---|---|---|
| 70°F — the day you filled them | 35 PSI | On target | Off |
| 40°F | 32 PSI | 3 PSI low — 9 percent under | Still off, and the tire is genuinely underinflated |
| 10°F | 29 PSI | 6 PSI low — 17 percent under | Still off. A lot of owners first see a soft-looking tire here |
| −20°F | 26 PSI | 9 PSI low — 26 percent under | On. The car has finally crossed the 25 percent line it is required to warn about |
| Same day, after 15 minutes of highway driving | 30 to 32 PSI | Back near target as the tires warm up | Often goes out on its own — which is exactly why the light is not proof of a leak |
04 — Four Ways To Reset The Light
How To Reset The TPMS Light: Drive It Out, Button, Stationary Learn Or OBD
Resetting a tire pressure light means teaching the car where its sensors are, or letting it notice them again. Four routes do that job, and they differ in what they fix. Only two of them cost nothing.
| Route | What you actually do | What it fixes | Tool and cost |
|---|---|---|---|
| 1. Drive it out | Set all four tires to placard pressure, then drive roughly 20 minutes above 50 mph. A 2008 Charger needed exactly this: inflate, drive 20 minutes, light off. | A lamp triggered by low pressure, and vehicles that re-learn on their own after a rotation or a pressure correction. | Free |
| 2. Button or calibration menu | Most Hondas use a TPMS button beside the steering wheel or a TPMS Calibration item in the instrument menu. Hold the button until the lamp blinks three to five times, wait about 20 minutes, then drive a couple of miles. | Indirect systems recalibrating to the new pressure, and direct systems on Hondas that re-teach on a drive cycle. | Free |
| 3. Stationary (manual) learn | GM: ignition on without starting, hold LOCK and UNLOCK on the key fob about five seconds — two horn chirps — then trigger each sensor in order, left front, right front, right rear, left rear, one horn chirp per wheel learned. You have about two minutes or the mode cancels. Ford uses a brake-pedal training sequence instead: pedal, ignition off-to-on three times, pedal again. | A rotation, a new sensor, or a system that lost its sensor positions — without driving. | A handheld activation tool is the normal route, roughly $50 to $500. On some GM systems a relearn magnet over the valve stem does the same job, and an owner's-manual method lets air out of a tire for a few seconds until the horn answers. |
| 4. OBD relearn | A scan tool reads all four sensor IDs at the wheels, plugs into the OBD-II port, and writes the IDs into the TPMS module. A 2011 Camry is the textbook case: read the IDs, reset through OBD, cycle the ignition, then drive about 12 mph for up to five minutes. Most Toyotas and several specialty European models use this route. | New sensors whose IDs the car has never seen — the usual reason a fresh sensor still leaves the lamp on. | Handheld TPMS tool with an OBD module, or a scan tool that can write IDs |
05 — Battery Life And Repair Bills
TPMS Sensor Battery Life And Replacement Cost: Where The Money Goes
Sensor batteries are sealed for life and rated in years, not months, so a TPMS fault tends to arrive as a function of the car's age. When it does, the same part costs anywhere from a tire-chain price to a dealer price, and the spread is mostly labor and programming rather than the sensor.
| Where the work happens | Per sensor, installed | All four at once | What drives the price |
|---|---|---|---|
| Tire chain | $60–$75 | $250–$300 | Aftermarket sensors, programming included, and a free reset on most visits |
| Independent shop | $75–$100 | $300–$400 | Remounting and rebalancing the wheel; some shops quote programming separately at $100–$200 |
| Dealership | $100–$150 | $750–$1,200 | Original equipment sensors at list price, plus diagnostic time billed to you |
| Sensor alone, ordered yourself | $30–$60 aftermarket, $75–$150 original equipment | $120–$240, or $300–$600 original | The part only. The tire still comes off, so plan on labor anyway |
06 — Emulators For Dead Sensor Systems
TPMS Emulators And Delete Modules, Matched To Your Vehicle
A dead sensor has no software answer — no reset, no relearn and no code clear brings the battery back. An emulator is the other direction entirely: a small in-cabin module that represents the four wheel positions to the car electronically, so the system behaves as though working sensors are fitted. It suits vehicles running winter wheels, specialty rims or a set of tires whose sensors keep failing, and it comes straight out when ordinary sensors go back in.
2008–2016 GMC Sierra 1500
TPMS Sensor Emulator · in-cabin
$119.99
Represents LF / RF / RR / LR · removable
2010–2016 Chevrolet Camaro
TPMS Sensor Emulator · in-cabin
$119.99
All four positions from one unit

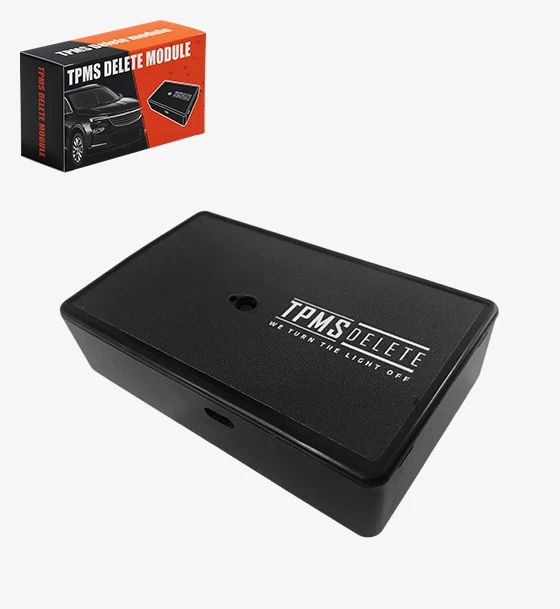

2007–2016 Chevrolet Silverado 1500
TPMS Sensor Emulator · in-cabin
$119.99
Also covers 2012 Orlando · confirm year
2008–2016 Chevrolet Tahoe
TPMS Sensor Emulator · in-cabin
$119.99
Also covers 2008–2009 Uplander
2011–2017 Ford Expedition
TPMS Sensor Emulator · in-cabin
$119.99
Unit sits away from tires and sealants
2010–2018 Ford Focus
TPMS Sensor Emulator · in-cabin
$119.99
Nine consecutive model years
Not seeing your vehicle? The full TPMS emulator catalog carries Chevrolet, GMC and Ford applications year by year, and the vehicle compatibility guide shows how to confirm your model year before ordering. Brand detail lives in our Chevrolet and GMC guides.
07 — What The Law Says
When TPMS Became Standard In The US, And What The Rules Cover
TPMS is a manufacturing requirement, phased into new light vehicles on a fixed schedule rather than by model-year guesswork. The same rulebook also decides who may lawfully take a working system out of a vehicle, which is the part most owners never hear explained.
The TREAD Act is signed, requiring a tire pressure monitoring system on new vehicles and setting the 25 percent warning threshold that the standard would later implement.
A court decision voids the first version of FMVSS 138 because it allowed warning from just one tire, and the standard is re-established for all four.
NHTSA publishes the final rule that reinstates FMVSS No. 138 and sets the compliance schedule manufacturers will follow.
Phase-in begins: 20 percent of each manufacturer's light vehicles must comply from October 5, 2005 through August 31, 2006.
The second step: 70 percent of light vehicles must comply through August 31, 2007, and the fault lamp requirements arrive in full.
Every new light vehicle must comply — the point that makes 2008 and later effectively standard across the US market, and the reason nearly every used car on the road today has sensors.
The European Union follows: TPMS mandatory for new type approvals from November 1, 2012, and for all new passenger cars sold from November 1, 2014.
08 — Common Questions
Common TPMS Questions, Answered Directly
Why is my TPMS light on when my tires look fine?
Four ordinary reasons. Cold air has dropped a tire past the warning line while the sidewall still looks normal. Pressure was taken warm and is genuinely low now. The tires were rotated or swapped and the car lost track of where its sensors are. Or a sensor itself has failed and the car is reporting a system fault with a light that looks identical from the driver's seat. Measure all four cold against the door placard — that single step separates the first two from the last two.
Can I drive with the TPMS light on?
A solid lamp with a confirmed low pressure is a short-distance job: inflate to placard pressure as soon as you can. A flashing fault is different, because a faulted system is not monitoring anything — the car may not warn you about a genuinely low tire. If a tire is visibly soft, the car pulls, or the rim is bent, stop and check before driving. And if your state runs a TPMS lamp check at inspection, a permanent fault is a ticket waiting to happen.
Do I need to reset the TPMS after adding air or rotating tires?
After adding air, usually not — the light clears once the pressure is right, sometimes on the next drive. After a rotation or tire swap, it depends on the vehicle: many GM and Ford trucks re-teach automatically, while others want a stationary learn or an OBD relearn. Hondas with a calibration button or menu are asked to run it explicitly, because an indirect system is comparing tires to each other rather than reading them. If the lamp stays on after correct pressure, the system wanted a learn.
How long do TPMS sensors last?
Original equipment sensor batteries are usually rated 5 to 10 years, with an average around seven and roughly 100,000 miles as the mileage figure that goes with it. A parked sensor transmits far less often than a sensor on a commuting car, so driving style moves the date. Hot climates shorten it. Most of the 2007-onward vehicles that carry these sensors are now inside that window, which is why sensor failures have become a normal repair rather than a rarity.
How much does it cost to replace a TPMS sensor?
One sensor installed runs about $60–$75 at a tire chain, $75–$100 at an independent shop and $100–$150 at a dealership, where a full set can reach $750–$1,200. Ordering the sensor yourself brings the part to $30–$60 aftermarket, but the tire still has to come off the wheel, so the labor is unavoidable. A code-only diagnostic can add $80–$200 before any part is ordered.
Why does the light come back after I replaced the sensors?
Four usual reasons: the new sensor IDs were never written to the car, so it is still looking for sensors it knew; the sensor is the wrong radio frequency for your market; the replacement was damaged during mounting; or the module is the part that failed. A scan tool that shows battery status per wheel settles most of these in a couple of minutes, and it is the cheapest step before buying anything.
Is it illegal to disable or delete a TPMS?
The federal make-inoperative rule applies to manufacturers, distributors, dealers and repair businesses, so a shop that removes or suppresses a working TPMS is the one in violation — and NHTSA has said federal law does not require an owner to repair a malfunctioning system. Some state inspection programs do check that the TPMS lamp is not showing a fault, which is a separate matter from the federal rule. Either way, deleting the system means losing the low-pressure warning, so real pressure checks become yours to do.
How do I turn off the TPMS light?
Start with the cause, not the lamp. Correct cold pressure clears a solid light on its own. A system that lost its sensors after a rotation or tire change needs one of the four reset routes, from driving it out to an OBD relearn. A wheel with no sensor at all is a hardware gap, not a reset problem. And a failed sensor has nothing to reset — that one ends with a replacement sensor, or with an emulator module if the vehicle runs wheels that will never carry sensors.
